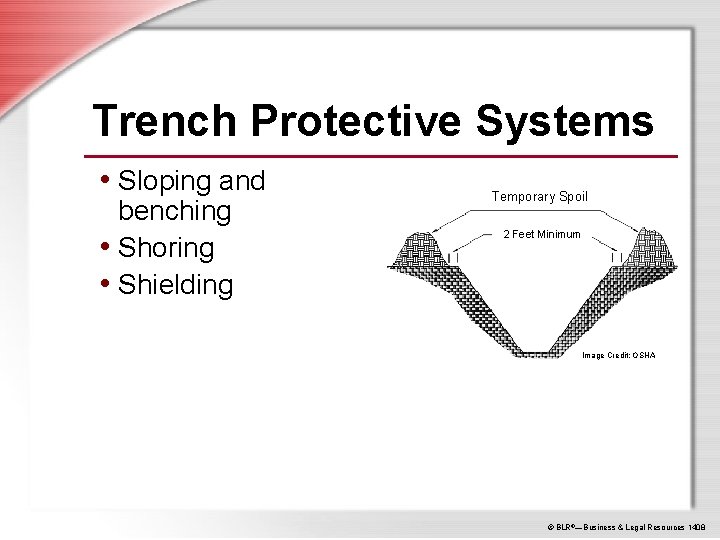

Shoring is often confused with shielding but in the context of trenches these two terms refer to very different retention methods. Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical.
The steel plates do actually have tabulated data on their depth ratings however the depth the engineering allows is often very limited compared to a trench shield panel or other shoring alternatives.
Shoring or shielding is most often used when. OSHA 30 Construction RedVector. OSHA 30 Construction ClickSafety. Shoring or shielding is most often used when.
The location or the depth of the excavation makes sloping back to the maximum allowable slope impractical. Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical. Shoring systems consist of posts wales struts and sheeting.
There are two basic types of shoring timber and aluminum hydraulic. Flying shore when the distance between two walls is considerable. Dead Shoring Dead shore is the system of shoring which is used to render vertical support to walls and roofs floors etc when the lower part of a wall has been removed for the purpose of providing an opening in the wall or to rebuild a defective load bearing wall in a structure figure 6 and 7.
Shoring is commonly used when installing the foundation of a building. A shoring system such as piles and lagging or shotcrete will support the surrounding loads until the underground levels of the building are constructed. Commonly used shoring equipment.
A shoring box is a system of panels supported by pistons and used to brace trench walls to prevent collapse. They are often used when workers have to enter an excavation which can be when repairs are needed on an existing utility line or a new one is being installed. When is shoring used.
Shoring is most effective when two criteria are present together on a jobsite. The necessity for flat ground to build on and proximity of the building footprint to a property line or existing structure. The need for flat and presumably buildable ground requires a method of cutting back and retaining the earth.
Excavation Shoring Methods Shielding Types. Shoring is the provision of a support system for trench faces used to prevent movement of soil underground utilities roadways and foundations. Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical.
For example a 24-ft shield is 288-in long 288-in150 192 or approximately 2 for a 24-ft shield and 1-in for a 10-ft shield. If a shield wall deflects more than that it should be rejected from use until an engineer reviews the shield and provides a new capacity rating if. Shoring is often confused with shielding but in the context of trenches these two terms refer to very different retention methods.
The root of this difference lies in intent. Whereas trench shielding is intended to protect workers in the event of a collapse trench shoring aims to prevent such a collapse from happening in the first place. Its not unusual therefore to find these two trench retention methods.
Shoring is the provision of a support system for trench faces used to prevent movement of soil underground utilities roadways and foundations. Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical. Shoring systems consist of posts wales struts and sheeting.
Most often this is used for large diameter pipe and box culvert installations. Typically clearances can be raised from 5-ft to 8-ft with the use of an arch spreader. Depending on the application and manufacturers tabulated data its possible that an additional 2-ft of clearance can be gained if the shield is held 2-ft off the bottom.
Shoring and shielding systems can prevent cave-ins in excavations with or without sloped benched faces. The safest way to install and remove them is from outside the excavation. The shoring temporary support structure must be designed to withstand allexternal forces that may be caused by.
Shoring and shielding systems can prevent cave-ins in excavations with or without sloped benched faces. The safest way to install and remove them is from outside the excavation. The shoring temporary support structure must be designed to withstand allexternal forces that may be caused by.
Contractors play an active role is selecting the correct shielding and shoring for their projects said Ross. Generally he said a projects consulting engineers do not dictate means and methods of construction. The contractor is encouraged to use the most efficient.
A shoring system is used to support the face of an excavation and to prevent movement of soil underground utilities roads and foundations. A shoring system is typically used when sloping is an inadequate solution due to the depth of the cut or the location. Shoring or shielding is used when the location or depth of the cut makes sloping back to the maximum allowable slope impractical.
Shoring systems consist of posts wales struts and sheeting. There are two basic types of shoring timber and aluminum hydraulic. Shoring is used to protect large areas so that a crew can work inside or adjacent to an excavation without danger of collapse.

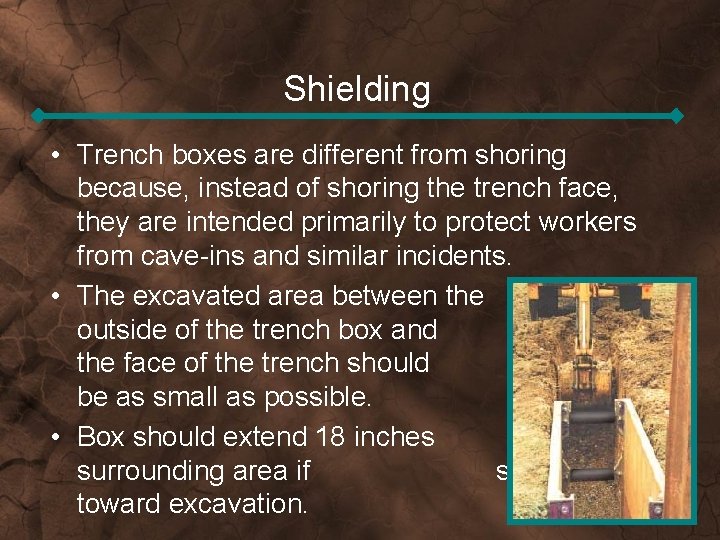

Shielding - Unlike shoring shielding is not designed to prevent a collapse of the trench walls. Instead shielding protects workers from cave-ins in a specific area of the trench where they are working. Shielding also commonly referred to as a trench box is usually.
Steel shoring plates are often used for temporary shoring or closing off trench boxes. The steel plates do actually have tabulated data on their depth ratings however the depth the engineering allows is often very limited compared to a trench shield panel or other shoring alternatives. Shoring systems are frameworks of hardwood mechanical or hydraulic systems that sustain the sides of an excavation and also which are designed to avoid cave-ins.
Sheeting is a kind of shoring system that keeps the earth ready. Engineered design is usually the least likely protective system to be used for trenching and excavation and timber shoring is the second least-likely system to be used. Like any of the four protective systems it also has its pros and cons.
Although it is not utilized frequently across the country timber shoring is the only.
